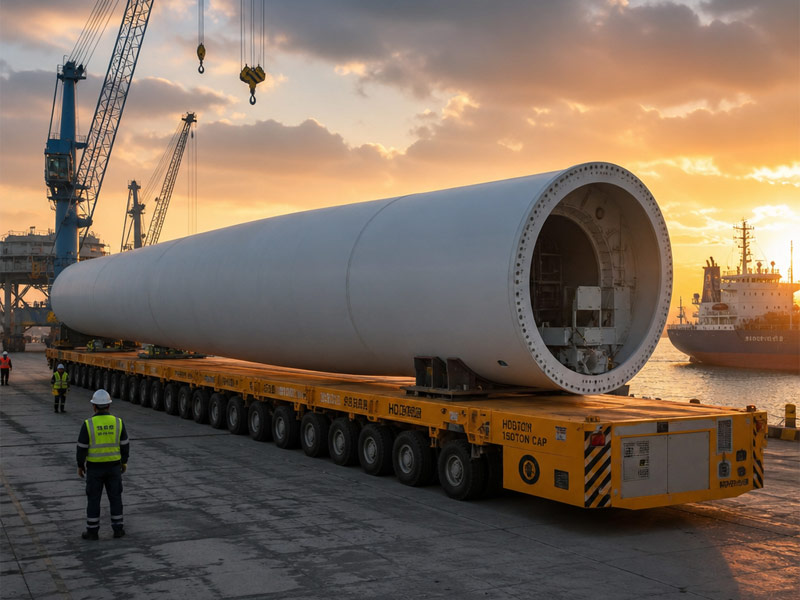

Wind tower specific transfer cart is a heavy‑duty electric handling vehicle customized for oversized and heavy wind power tower barrels. It adopts high‑strength integral welded steel frame, with customized arc‑shaped anti‑slip supports, which perfectly fits the radian of wind tower sections, effectively preventing sliding, rolling and surface damage during transportation.

Product Videos

Parameter Items	Technical Specifications
Rated Load Capacity (T)	50 – 500
Car Body Length (mm)	12000 – 25000 (Supports telescopic adjustment)
Car Body Width (mm)	3000 – 4500
Number of Steering Axles (sets)	8 – 16 (Multi-axis linkage steering)
Maximum Steering Angle (°)	±90 (Transverse, diagonal, figure-eight steering)
Hydraulic Balance Stroke (mm)	±150 (Road surface self-balancing)
Operating Speed (km/h)	0 – 5 (Heavy load, slow speed)
Control System	Dual-machine PLC synchronous controller
Communication Method	Industrial-grade wireless Mesh network
Tire Material	Heavy-duty solid rubber tires / Press-fit polyurethane wheels
Power Supply Voltage (V)	AC 380 (Cable reel) / 72V lithium battery
Leveling Accuracy (%)	≤ 1 (Automatic hydraulic leveling)
Emergency Braking Distance (m)	< 0.5 (Full load condition)
Structural Safety Factor	1.5

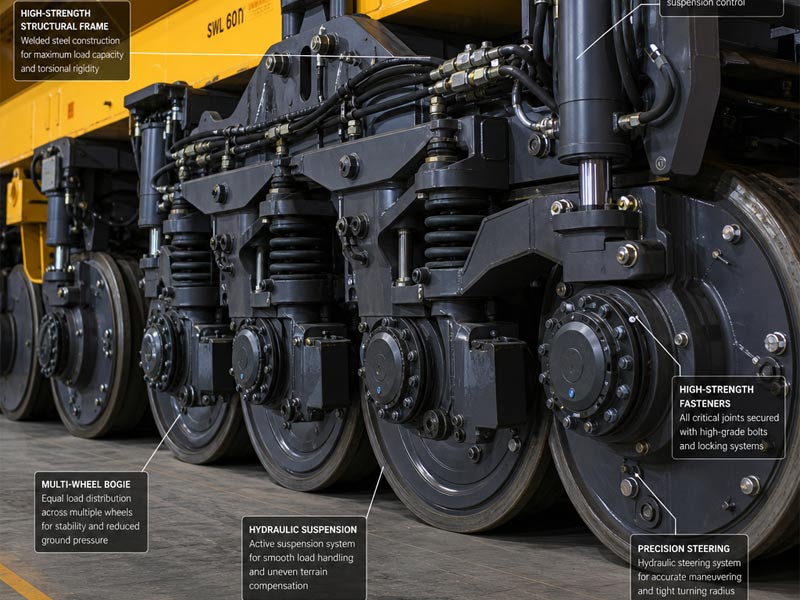

Ultra-heavy-duty stable load-bearing capacity: The heavy-duty steel structure body is suitable for large-size, heavy-duty wind turbine towers, ensuring stable load-bearing capacity, no deformation, and no bumps.

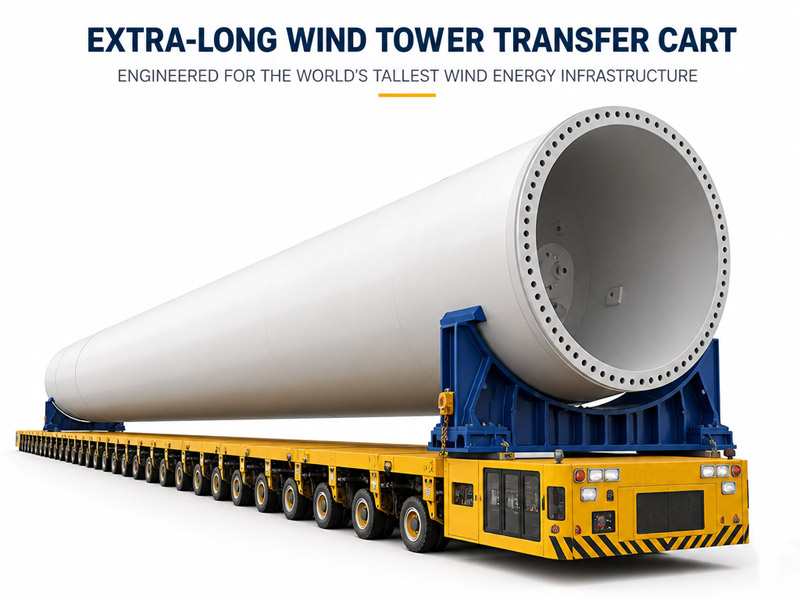

Dedicated tower protection for transport: Standard curved support saddle conforms to the tower’s curvature, preventing slippage, rolling, impacts, and paint damage.

Flexible movement adaptable to factory areas: Track-mounted type suitable for fixed assembly line transport; trackless type supports on-the-spot turning and passage through narrow passages, suitable for both indoor and outdoor use.

Intelligent and safe operation: Wireless remote control + vehicle-mounted control, with anti-collision, emergency stop, and overload protection; optional hydraulic lifting, precise positioning, and AGV automatic operation.

High-efficiency assembly line integration: Suitable for transporting towers throughout the entire process of welding, grinding, painting, flaw detection, and warehousing, replacing overhead cranes and increasing production capacity.

Wind turbine tower production workshop: Cross-process and cross-workshop transfer of tower bodies and flange sections.

Wind turbine painting/rust removal workshop: Transfer of large tower components to and from painting and sandblasting stations.

Wind turbine finished product storage yard: Relocation, storage, and loading of finished tower components for shipment.

New energy heavy equipment factory area: Heavy-duty handling of large wind turbine components, nacelles, and large pressure vessels
