Electric Turntable Rail Transfer Cart-Heavy Duty Transfer Cart & AGV/RGV Systems

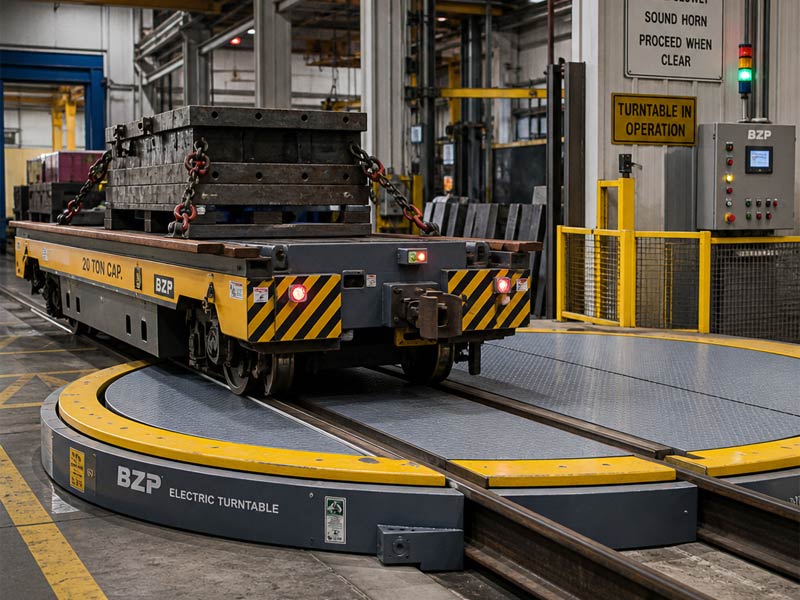

The BZP series electric rail turntable is an auxiliary reversing device in a rail transfer cart system. When the production line process requires the transfer cart to make a 90-degree turn, and space constraints prevent the laying of curved tracks, a turntable is installed at the track intersection. As the transfer cart travels to the center of the turntable, the turntable automatically rotates to align with the transverse track, thus achieving rapid reversing of the transfer cart.

Product Videos

Parameter Name	Standard Range
Rated Load Capacity (t)	1t – 500t
Turntable Diameter (mm)	Φ3000 – Φ6000+ Or customized

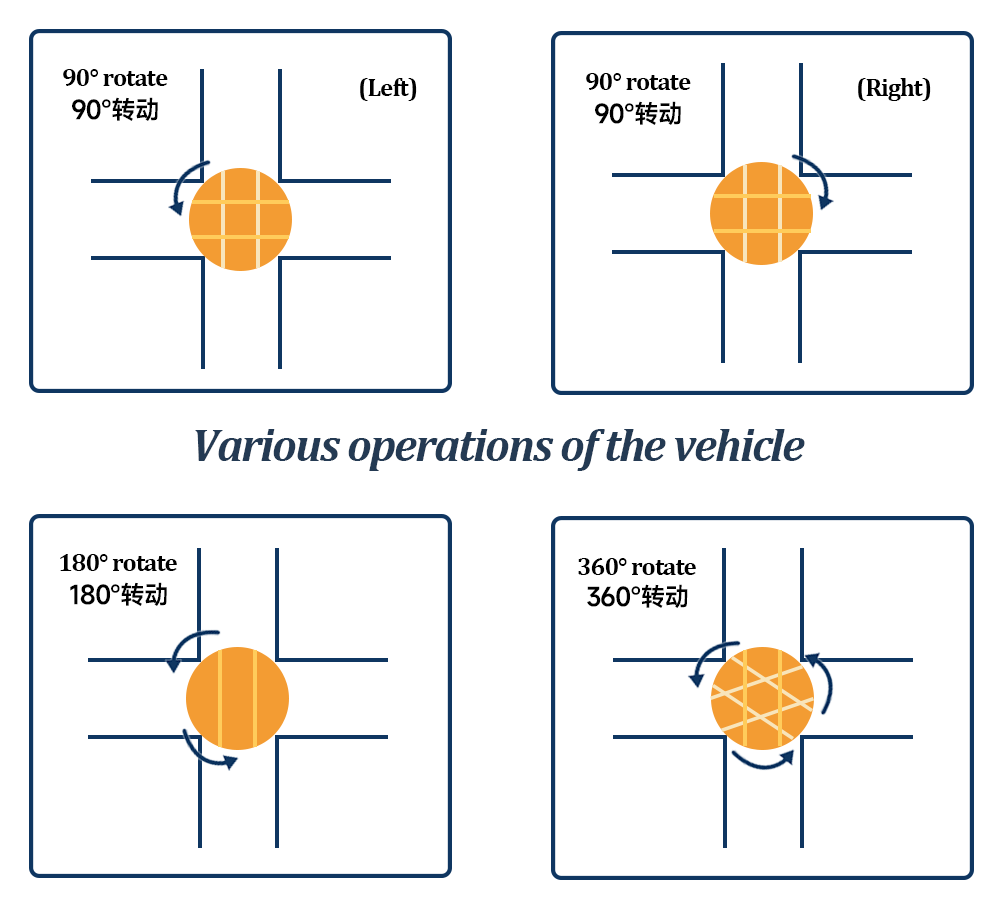

Rotation Angle (deg)	90°/180°/ 360°
Rotation Speed(r/min)	1 – 3 r/min
Rail Alignment Accuracy (mm)	± 2mm
Railway Spacing (mm)	1200 / 1435 / Customized

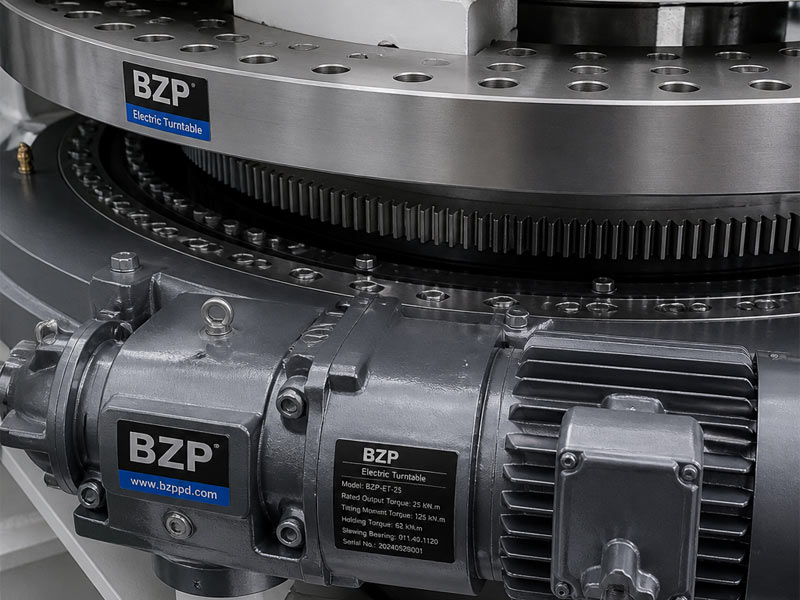

Motor Power (kW)	0.8 – 22 kW
Control Method	Remote Control + Pendant control
Installation Method	Pit Installation

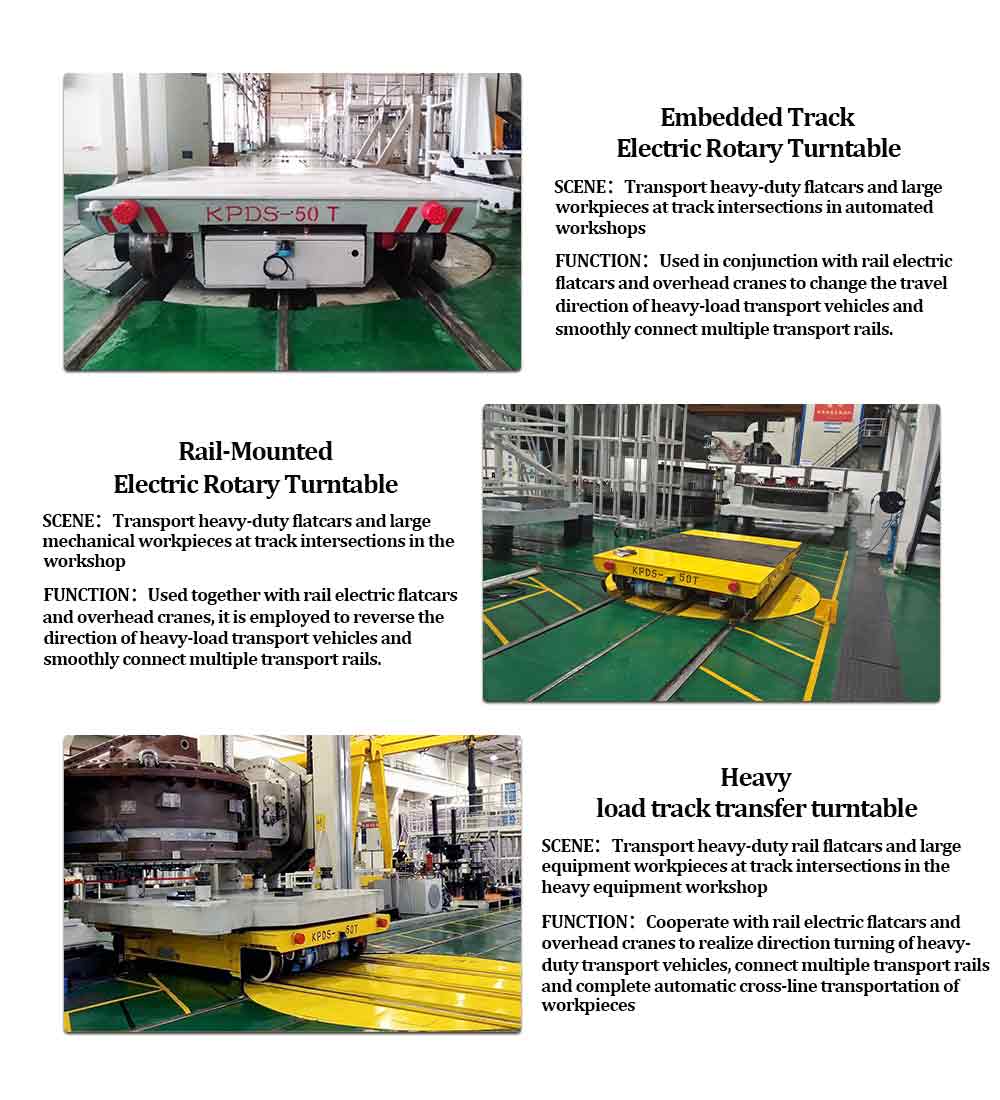

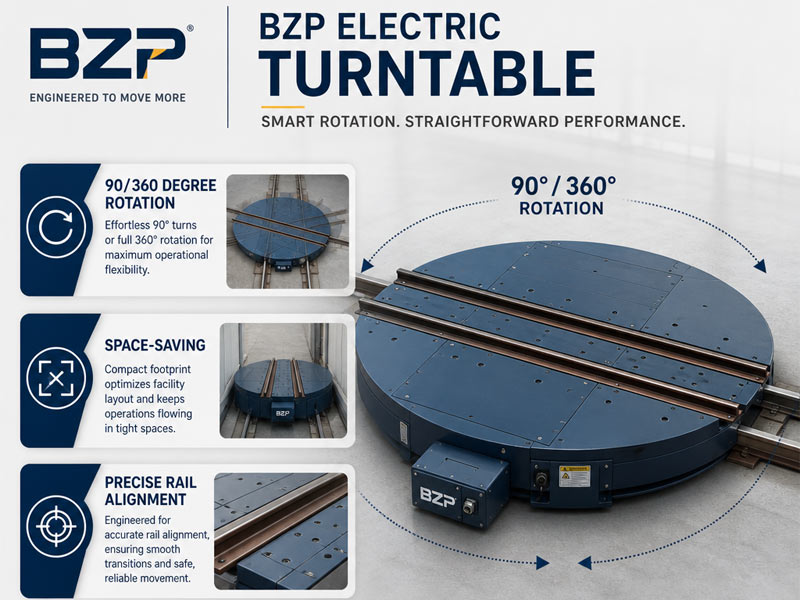

Minimal Turning Radius (Space Saving): Enables 90-degree turns for rail vehicles in extremely confined spaces, solving the problem of large space occupation associated with traditional curved tracks.

Automatic Precision Alignment: Equipped with advanced limit sensors, ensuring millimeter-level precision alignment between the rotated track and the external track, guaranteeing a smooth transition for the transfer cart.

Smooth & Safe Operation: Utilizes variable frequency start and stop, eliminating vibration during rotation. Features an interlock function—the transfer cart cannot start if the turntable is not aligned, ensuring operational safety.

Wide Load Capacity Coverage (Heavy Duty): Customizable structures are available for everything from transporting lightweight parts to reversing heavy equipment weighing hundreds of tons, with strong impact resistance.

Highly Automated: Can be integrated with RGV/AGV systems for fully automated, unmanned track changing operations.

Automated production lines: Using a cross-shaped or grid-shaped track layout, products are rapidly distributed between different workshops and workstations.

Logistics warehousing and transfer centers: Carousels are used to redirect goods within a crisscrossing area along fixed track paths.

Heavy equipment assembly workshops: Large transformers, pressure vessels, and large castings are moved between different testing or assembly stations.

Renovation of old factories with limited space: In factories where curve radius requirements cannot be met, turntables are used to create a rail transit layout.

Electric Turntable Rail Transfer Cart
