Circular Multi-Vehicle RGV System-Heavy Duty Transfer Cart & AGV/RGV Systems

Unlike the straight-line shuttle, the RGV-C operates on a circular loop or closed-track network. It supports multiple vehicles running simultaneously, coordinated by a central dispatching system to maximize logistics efficiency without path congestion

Product Videos

Model	RGV-C
Tonnage (T)	1-500
Impact Load	120% of rated load
Minimum Turning Radius	1500mm
Motor Power	3.0kW – 5.5kW (Variable frequency drive)
Braking Method	Electromagnetic mechanical brake
Operating Speed	0 – 150m/min
Control Method	PLC centralized control + wireless dispatch management
Operating Method	HMI touch screen input / WMS command issuance
Safety Protection	Laser sensor, multi-vehicle anti-collision algorithm, anti-slip design
Platform Requirements	Hardened concrete ground, supports closed-loop track installation
Alarm Prompts	Audio-visual + voice prompts
Docking Requirements	Can be used with central control dispatching
Special Requirements	Lifting, tooling rack

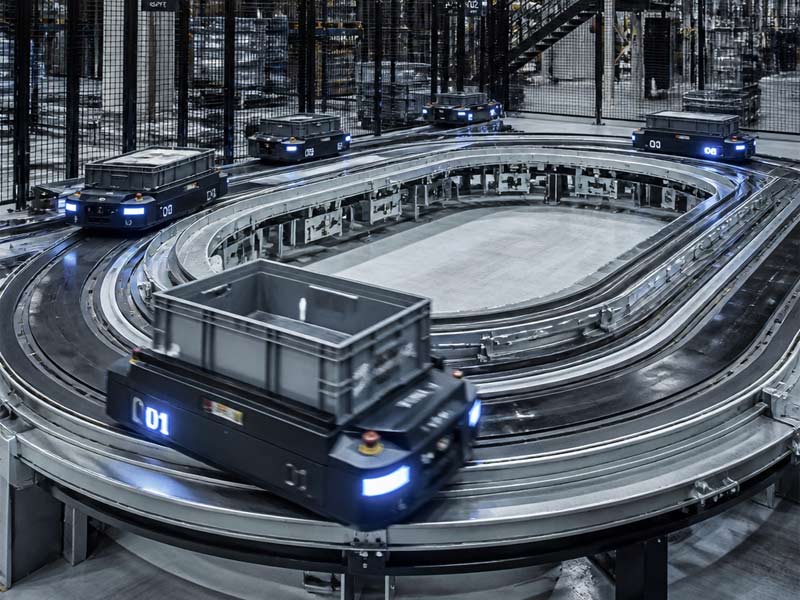

Multiple vehicles operate simultaneously along a closed-loop track without interfering with each other;

Automatic transfer of pallets and bins, with onboard conveyors handling loading and unloading;

The system centrally schedules multiple vehicles, allowing for parallel task processing;

High-precision positioning, compatible with stacker cranes, conveyors, and elevators;

Integrates with WMS/WCS/MES, enabling 24/7 unmanned operation;

Features anti-collision and emergency stop protection, and supports RFID material identification;

Large-scale automated storage and retrieval systems (AS/RS): High-throughput inbound and outbound operations, pre-warehouse sorting and transfer.

New energy factories: Mass production flow of lithium battery modules and battery packs.

Automotive manufacturing: Mass production line-side delivery of parts and tooling.

E-commerce/Tobacco warehousing: High-volume pallet sorting and conveying.

Large-scale intelligent manufacturing workshops: Multi-station, high-frequency material flow.

Circular Multi-Vehicle RGV System
