Sliding Contact Line Rail Transfer Cart-Heavy Duty Transfer Cart & AGV/RGV Systems

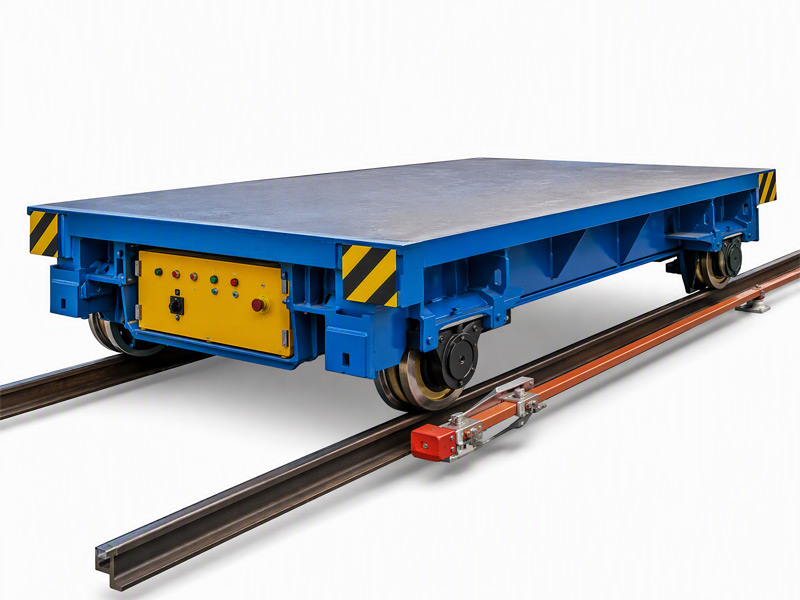

The sliding contact line powered rail transfer cart directly supplies AC power safety contact line power to the transfer cart’s AC control system for starting, stopping, forward movement, and reversing. Power is supplied to the transfer cart by the movement of the transfer cart, which moves the sliding contact line’s slider. The safety contact line is limited by its installation location; it can be installed in the middle of the track or in a trench outside the track. For safety and convenience, a cover can be added to the trench, and an automatic flip-up device allows power to be introduced from the trench to the rail transfer cart. The operating system uses a low-voltage 36V power supply.

Product Videos

Model	KPC
Rated Load Capacity (T)	5	10	20	30	40	50	80	100
Overall Dimensions (mm)	3500*2000	3600*2000	4000*2200	4500*2200	5500*2500	5500*2500	6500*2600	6500*2800
Overall Height (mm)	450	500	550	600	650	650	800	850
Wheel Diameter (mm)	Φ300	Φ300	Φ350	Φ400	Φ500	Φ500	Φ600	Φ600
Maximum Wheel Pressure (KN)	25.8	42.6	77.7	110.4	142.8	174	278.4	343.8
Rail Inner Distance (mm)	1435	1435	1435	1435	1435	1435	1800	2000
Motor Power (Kw)	1.5	1.5	2.5	4	5.5	5.5	7.5	11
Wheel Track (mm)	2500	2600	2800	3200	3800	4200	4700	4900
Recommend Rail Model	P18	P18	P24	P38	P43	P43	P50	QU100
Number of Wheels	2004/6/8
Ground Clearance (mm)	Min 50
Travel Speed (m/min)	0-25
Operating Method	Remote Control + Pendant control
Safety Protection	Sounds&Alarm light +Emergency Stop button
Tabletop Requirements	Add rubber matting/V-shaped frame/table lifting/side-tilting/toolrack(non-standard customization)

Unlimited Travel: Because the conductor rail can be laid indefinitely along the track, the KPC perfectly solves the problems of “wire tangling” and “wear” during long-distance cable car operation, making it the optimal solution for long-distance transportation exceeding 100 meters.

Multi-Unit Operation: The same section of conductor rail can simultaneously power multiple transport vehicles without interference. This is a significant advantage for complex multi-station synchronous operations.

Supports High-Frequency Continuous Operation (24/7 Service): Direct grid connection eliminates charging wait times. Combined with the high conductivity of the conductor rail, it meets the high-intensity, uninterrupted logistics needs of factories.

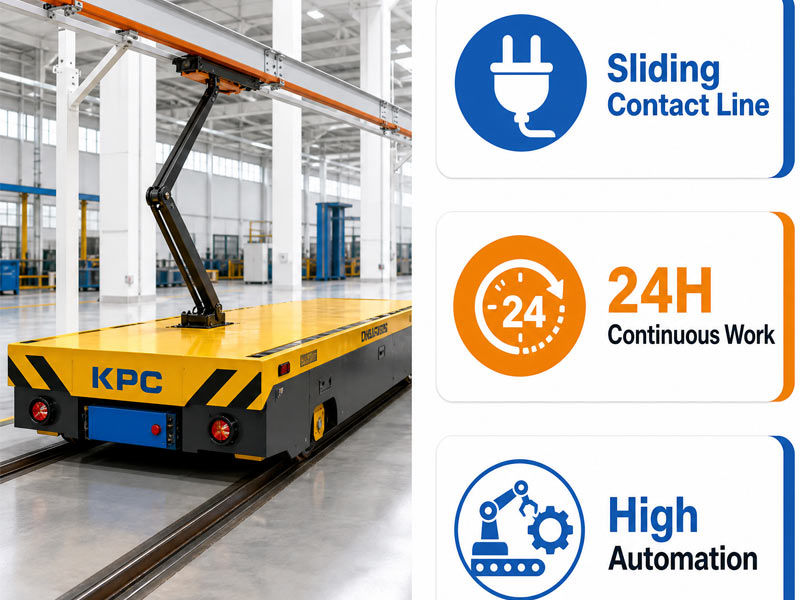

Compact & Versatile: The conductor rail can be installed in trenches below the track (with flap protection), or it can be overhead or hung on walls/columns, without occupying ground operating space, and the vehicle height can be kept extremely low.

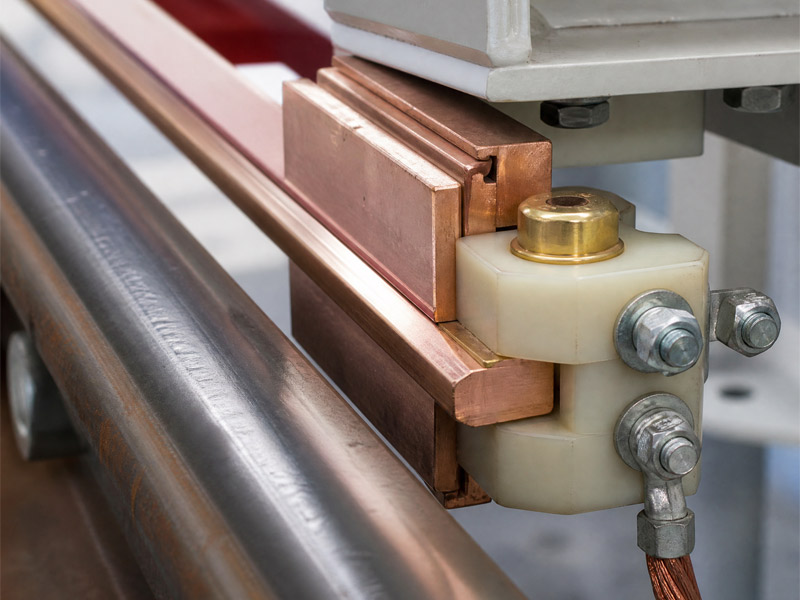

High safety (Safety First): It adopts a safety-type conduit sliding contact line with multi-level protection, good anti-electric shock performance, and automatic compensation of contact tension by the electrical receiver during operation, resulting in extremely stable operation.

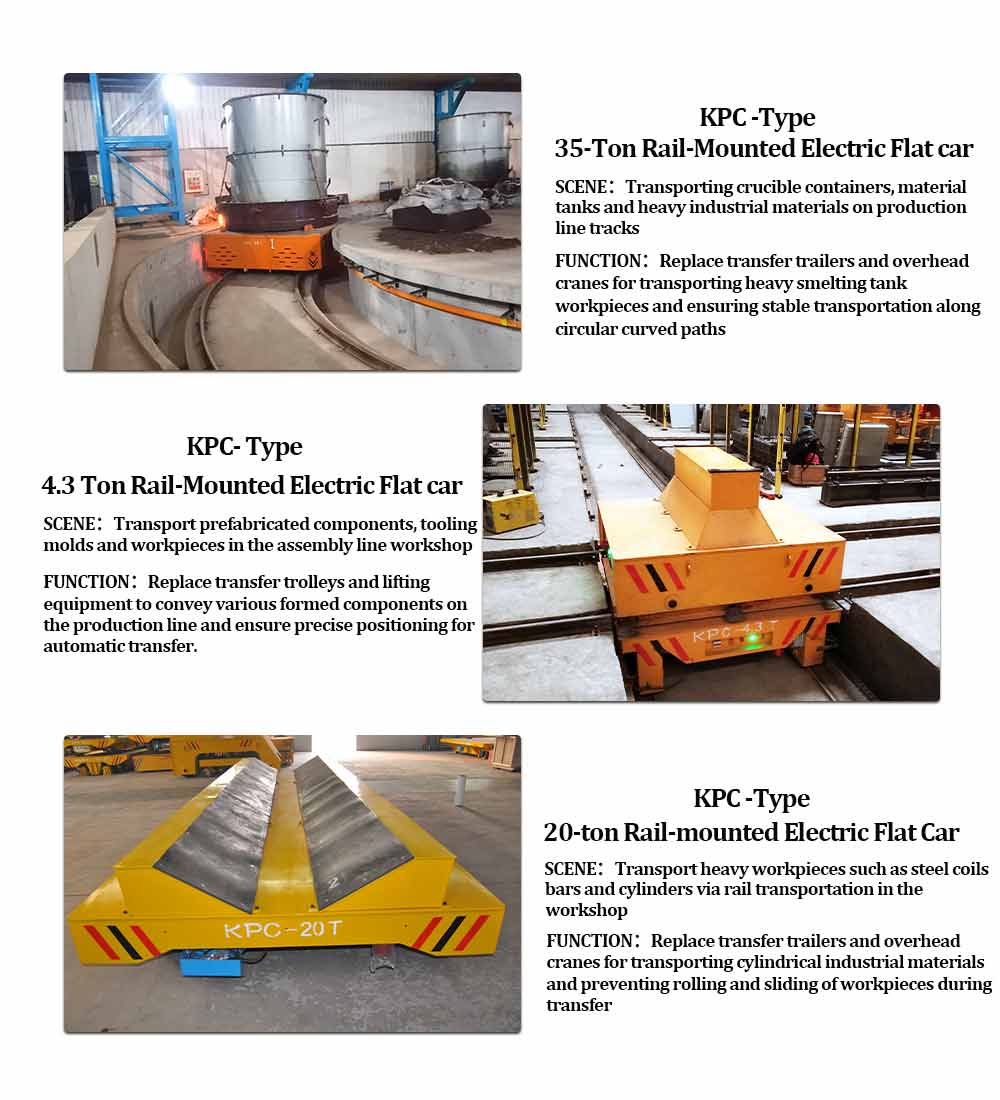

Automated production lines in workshops: Streamlined, reciprocating material handling between multiple workstations.

Long-distance cross-span transportation: Long-distance transfer of raw materials or semi-finished products between large factory buildings (e.g., 100-500 meters).

Metallurgy and heavy manufacturing: Serving as ground support systems for cranes in harsh environments such as steel mills and shipyards requiring long-distance operations.

Warehouse and dockside distribution: Long-distance distribution of goods in fixed-path warehousing centers.

Rated load (T)	1-1000 (T)
Rail inner distance (mm)	1435mm or customized
Motor power (kW)	1.5-15
Wheel track (mm)	2500-4900
Ground clearance (mm)	Min 50
Running speed (m/min)	0-30 (m/min)
Operating method	Remote control+Pendant control
Safety protection	Sounds&Alarm light +Emergency Stop button
Tabletop requirements	Rubber Sheet/V-Shaped Frame/Table Lifting/Side Tilting/Tooling Rack
Customization	Custom production available, including additional components, etc.
