Side-tipping industrial trailers use hydraulic cylinders to tilt the platform, allowing goods to be automatically unloaded from the side. They are ideal for handling bulk materials, sidewalk waste, coal sand, and other scenarios requiring high-frequency automatic unloading, and are often used in conjunction with industrial tractor-trailers. Equipped with a reliable hydraulic system and safety locking mechanism, they are towed by forklifts or tractor-trailers and are suitable for transporting sand, gravel, waste, and granular materials in workshops, factories, and construction sites.

Product Videos

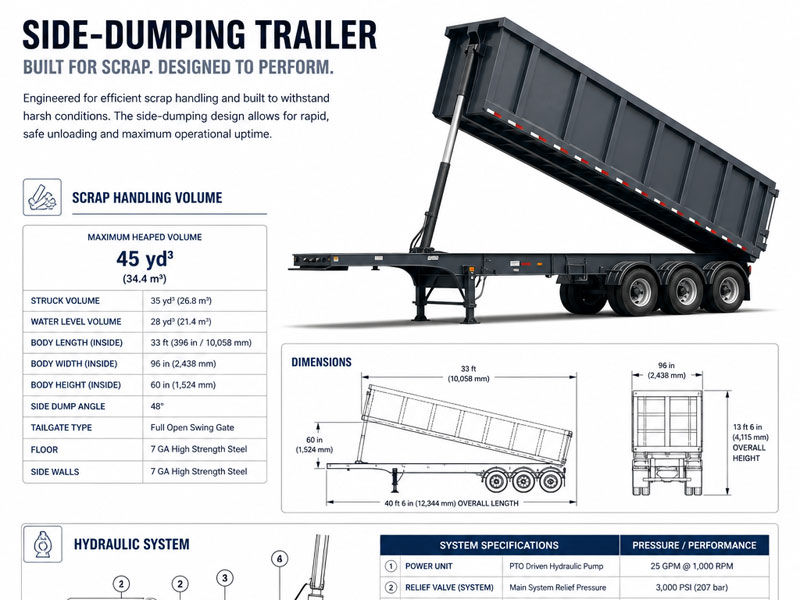

Parameter Items	Technical Specifications
Rated load (T)	2 – 20 (Supports multiple vehicle groups)
Side rollover angle (°)	≥ 45 (material completely unloaded)
Unloading direction	Single-sided flip / Dual-sided optional
Power source (hydraulic)	External power supply / vehicle battery pump station
Hydraulic system pressure (MPa)	16 – 20
Truck compartment capacity (m³)	2 – 10 (Customized according to density)
Lifting time (s)	15 – 30
Steering form	Rotary steering / Axle steering
Tire type	High-load solid tire / Inflatable tire (outdoor)
Side panel locking mechanism	Automatic heavy-duty lock / Automatic locking hook
Car body material	Wear-resistant manganese steel plate (4mm sidewalls, 6mm bottom plate)
Sealing performance	Fully welded structure (to prevent material leakage)
Weight (kg)	800 – 2500
Table processing	Shot blasting for rust removal + high-wear-resistant paint

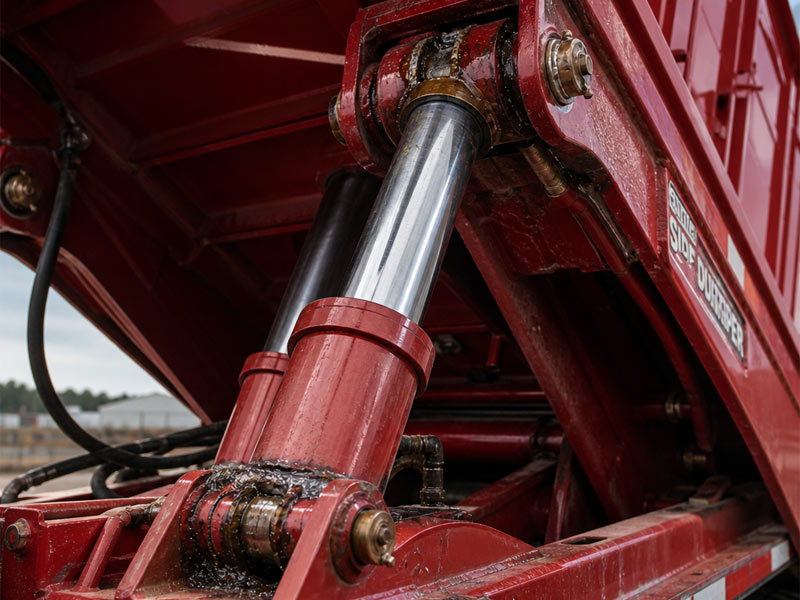

Emergency Descent Protection	Hydraulic one-way flow limiting safety valve

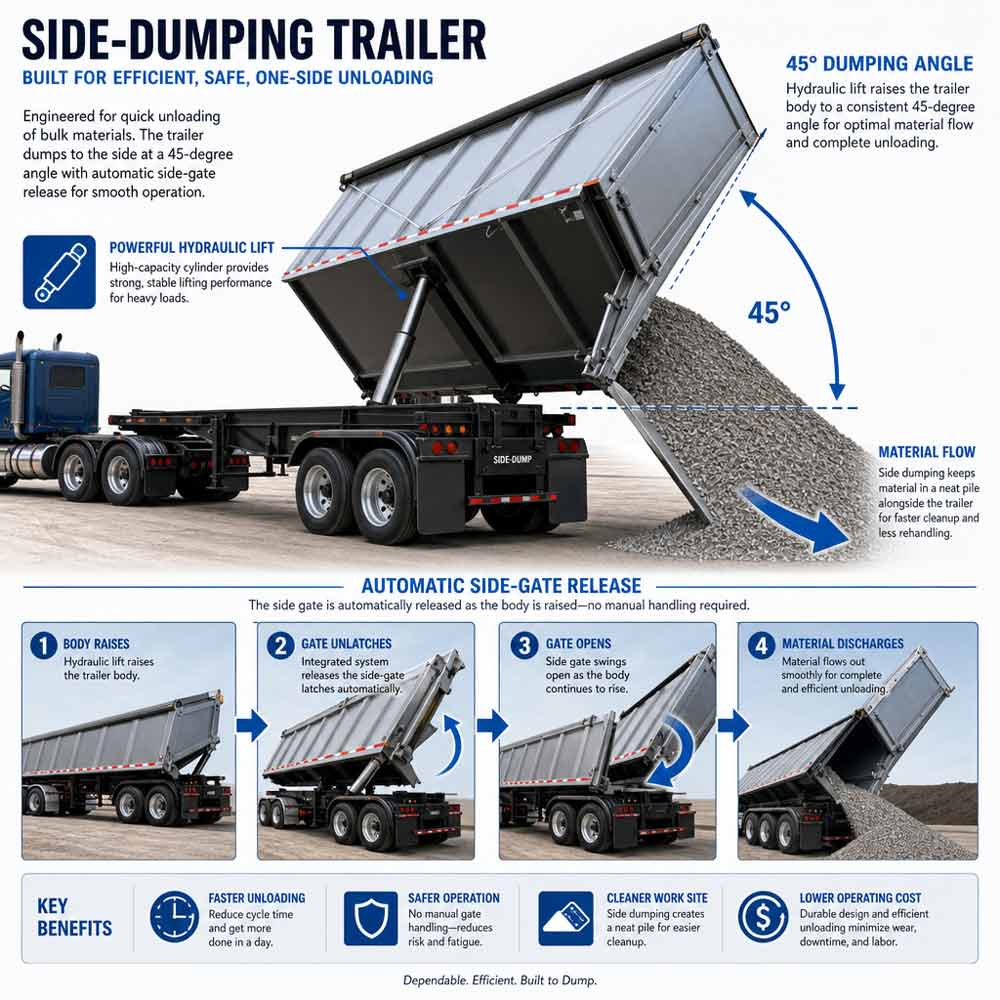

High-angle tipping mechanism: The tilting angle is adjustable to over 45 degrees, ensuring smooth unloading of viscous materials or powders even under heavy load.

Automatic side door opening and closing: The side door locking hooks automatically open at the start of tilting and automatically lock upon resetting, requiring no manual intervention throughout the process.

Independent hydraulic station for vehicle load: Built-in low-noise hydraulic pump and control system; unloading action is executed simply by providing an electrical signal.

Heavy-duty wear-resistant floor plate: Designed for impact-sensitive materials such as scrap steel and sand, the floor plate utilizes a reinforced rib structure and wear-resistant alloy steel plate.

Smooth lifting control: Equipped with a buffer regulating valve to ensure no severe vibration during heavy-load tilting and resetting.

Multi-point heavy-duty locks: Multiple sets of heavy-duty mechanical lock blocks are distributed on the sides of the truck body to ensure no material spillage during operation.

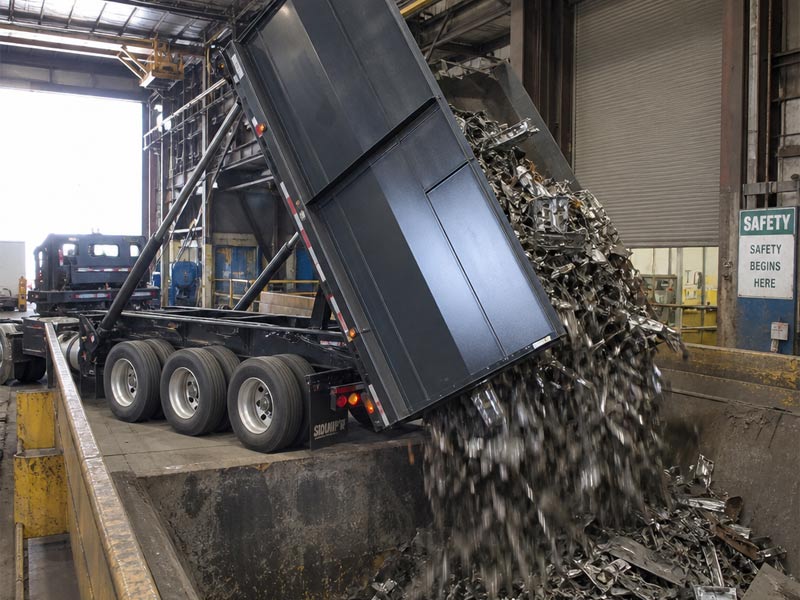

Regular centralized collection and automatic unloading of metal scrap and offcuts in machining workshops.

Rapid dumping and molding sand recycling of materials in casting boxes within foundries.

Short-distance transfer of scattered energy materials such as coal and coke within energy enterprise areas.

Transfer of domestic waste or industrial solid waste within urban environmental protection facilities.

In-plant transfer of raw materials (sand) for precast components in building material production lines.

Rapid unloading of granular bulk materials within port bulk cargo warehouses.
