Heavy-Duty Omni-Directional AGV-Heavy Duty Transfer Cart & AGV/RGV Systems

This kind of heavy-duty omnidirectional AGV platform is a “god of engineering” in the industrial material handling field. It employs multi-wheel synchronous control technology, specifically designed to handle ultra-large components weighing tens to hundreds of tons. This equipment boasts extremely high structural rigidity and dynamic redundancy, enabling it to perform precision transport tasks in extremely complex industrial environments, providing reliable automated material handling support for high-end equipment manufacturing industries such as aerospace, power generation, and nuclear energy equipment.

Product Videos

Model

AGV-H

Rated load capacity

10 Tons – 150 Tons (expandable)

Impact load

150% of rated load

Total motor power

20kW – 80kW (depending on wheel train group)

Braking method

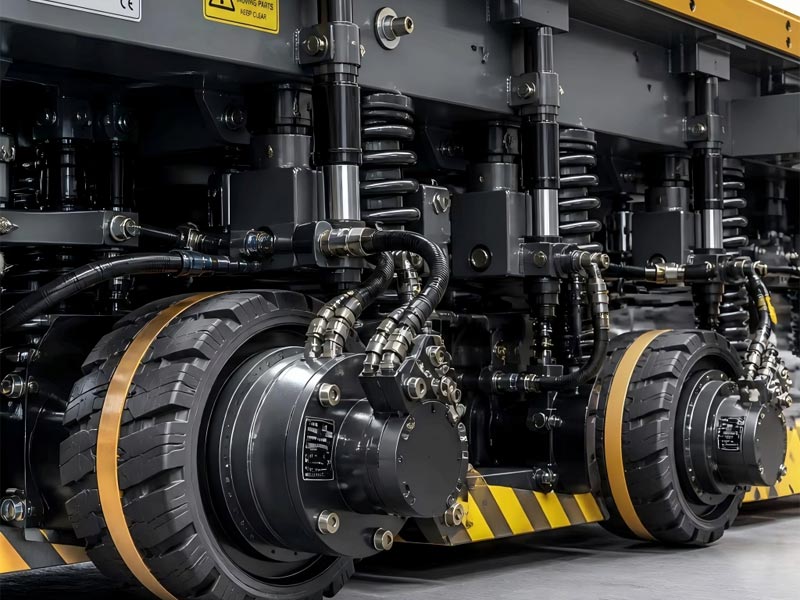

Multi-stage electromagnetic braking + mechanical hydraulic dual-system braking

Operating speed

0 – 25m/min

Ground clearance

80mm – 150mm

Operating method

Long-range industrial-grade remote control / laser SLAM autonomous driving

Safety protection

Multi-level safety collision avoidance radar, multi-channel video monitoring, omnidirectional audible and visual alarms

Platform requirements

High-strength concrete road surface; foundation bearing capacity needs to be verified.

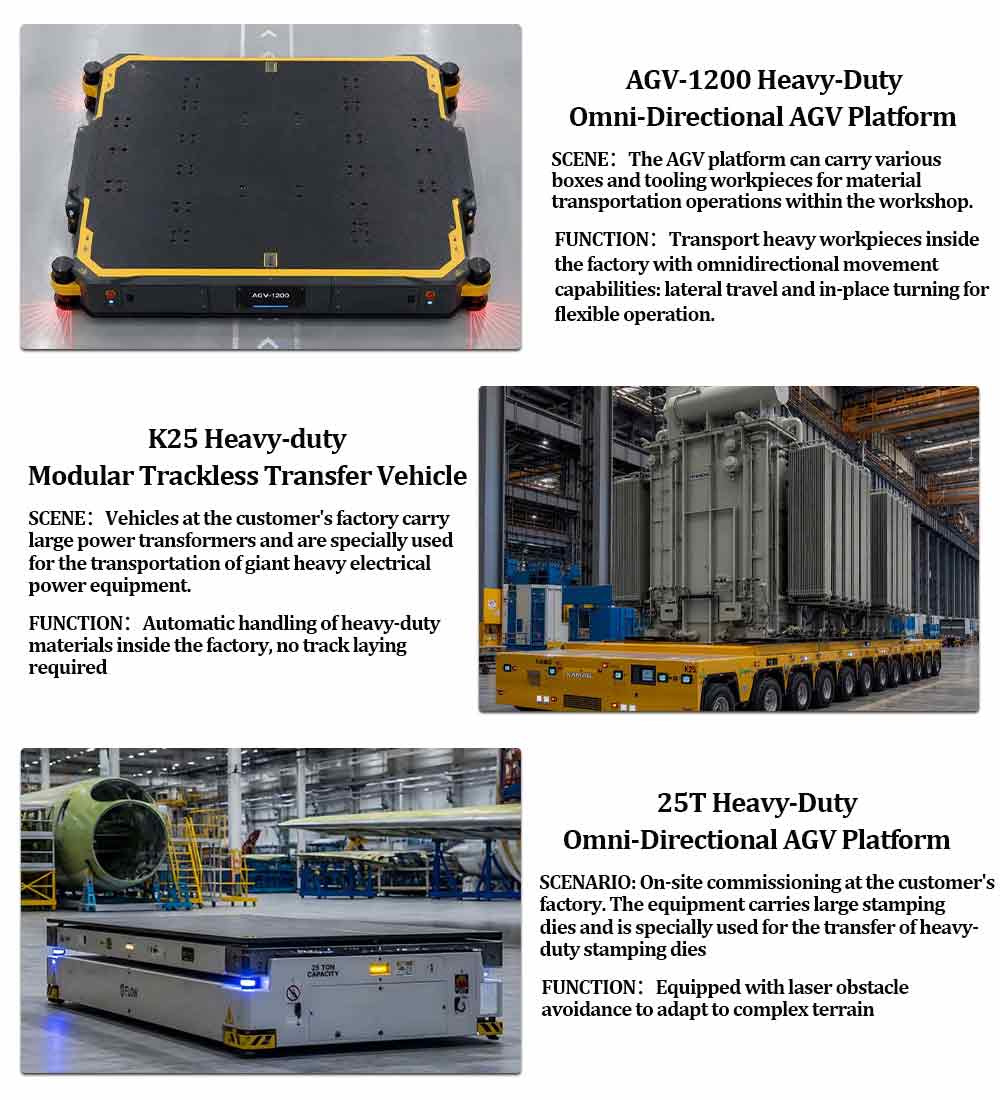

Omnidirectional movement: lateral movement and in-situ turning, flexible steering.

Automatic handling of heavy-duty materials, no need for track laying.

Laser/magnetic navigation, automatic and remote control dual modes.

Integrates with lifting/forklift mechanisms for cargo docking.

Multi-vehicle collaborative scheduling, integrates with WMS/MES systems.

Laser obstacle avoidance and overload protection, adaptable to complex terrain.

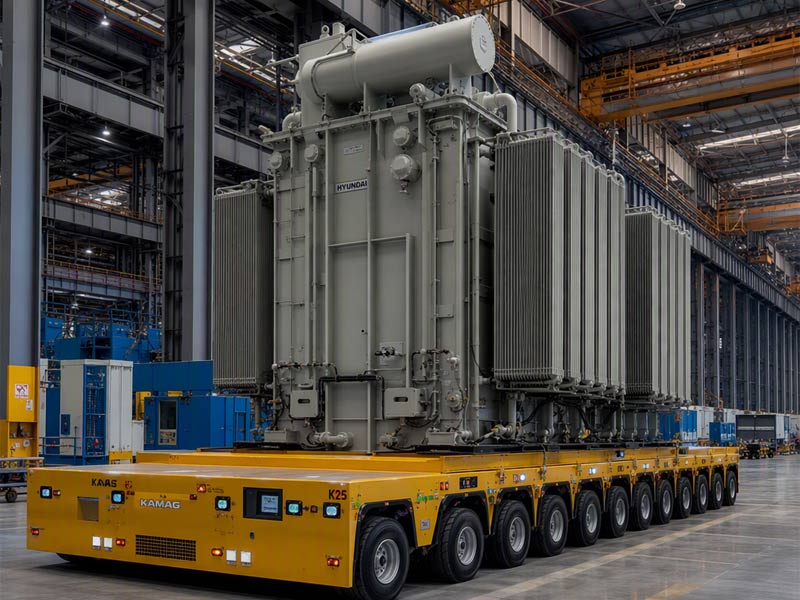

Heavy Industry Workshop: Transfer of large molds, steel structures, and heavy equipment

New Energy Industry: Handling of battery packs and large modules

Automotive Factory: Transport of car bodies and large tooling fixtures

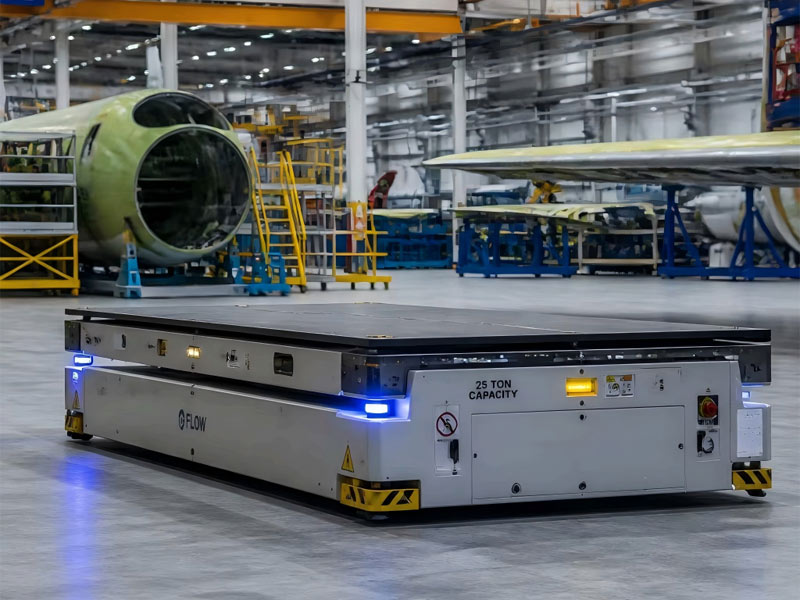

Equipment Manufacturing: Cross-workstation transfer of complete machines and large components

Port/Factory Workshop: In-yard turnover of heavy materials

Old Factory Renovation: On-site work where construction tracks are inconvenient
