Electric Turntables – BZP-Heavy Duty Transfer Cart & AGV/RGV Systems

The electric rotary turntable (BZP series) is mainly used for track switching on rail-guided flatbed trucks at T-junctions or other diagonal intersections. It is the core hub in rail-guided transport systems for solving steering problems, enabling precise 90/180/360-degree rotation.

Product Videos

Parameters	Technical Specifications
Rated load (T)	1 – 200 (Customizable to support ultra-large loads)
Turntable diameter (mm)	Φ2000 – Φ6000 (perspective axis distance is fixed)

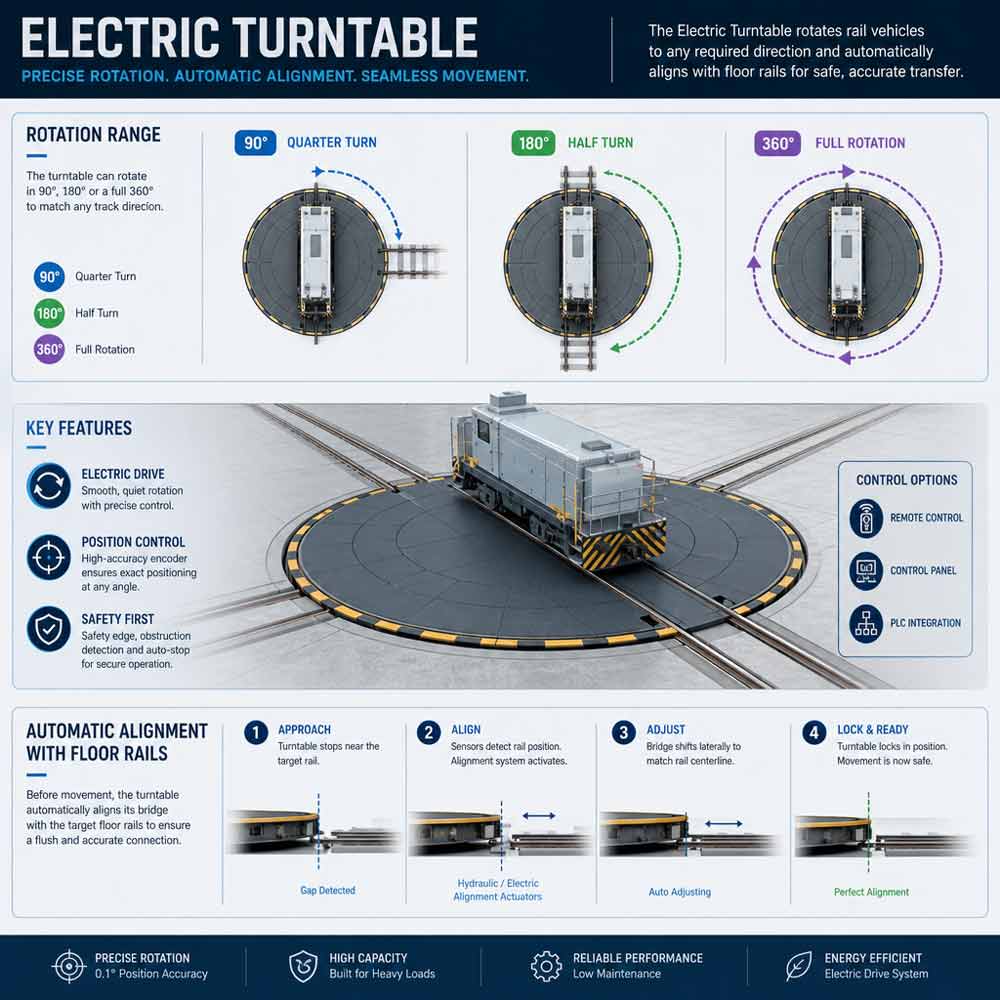

Rotation degree (°)	0 – 360 (adjustable to any angle)
Alignment accuracy (mm)	±2 (Laser-sensing precision docking track)
Rotational speed (rpm)	1 – 3 (Variable Frequency Smooth Start)
Motor power (kW)	2.2 – 11 (Dual motor drive optional)
Track spacing (mm)	1435 / 1200 / Custom Size
Turntable thickness (mm)	300 – 600 (Installation in low-depth foundation pits)
Power supply	Battery / Low-voltage rail / Contact line

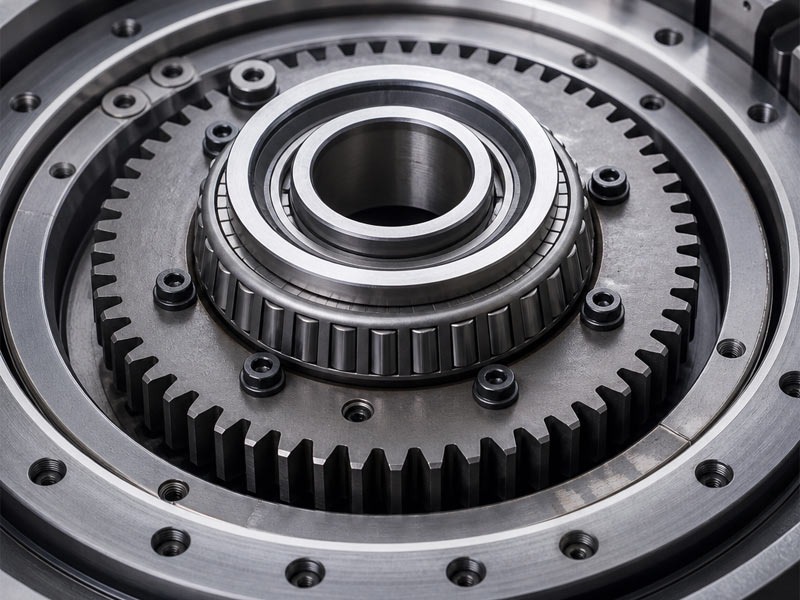

Rotary drive type	Slewing bearing + wheel meshing drive
control system	PLC program control (can be linked with a flatbed truck)
Parking limit	Mechanical limit switch + proximity switch dual protection
Surface laying material	Anti-slip textured steel plate / Patterned cover plate
Operating noise (dB)	≤ 65
Lateral impact resistance (kN)	≥ 200

Millimeter-level track docking: A high-precision encoder and frequency converter work together to achieve seamless and precise docking between the turntable track and the ground track.

Fully automated control process: Can be integrated with an area scheduling system to achieve automatic detection, automatic rotation, and automatic locking after the vehicle reaches its destination.

Low-depth excavation design: Optimized internal drive structure significantly reduces the depth of construction excavation, lowering construction costs and difficulty.

Superior load-bearing capacity: Employs a large slewing bearing structure, capable of withstanding vertical dynamic loads and impacts during rapid vehicle passage.

Multi-degree path guidance: Supports not only T-shaped intersection guidance but also allows for special angled turns such as 45 degrees and 60 degrees, tailored to different process flows.

Emergency manual release: Equipped with a mechanical manual rotation mechanism to ensure emergency dispatch can still be completed in the event of power system failure.

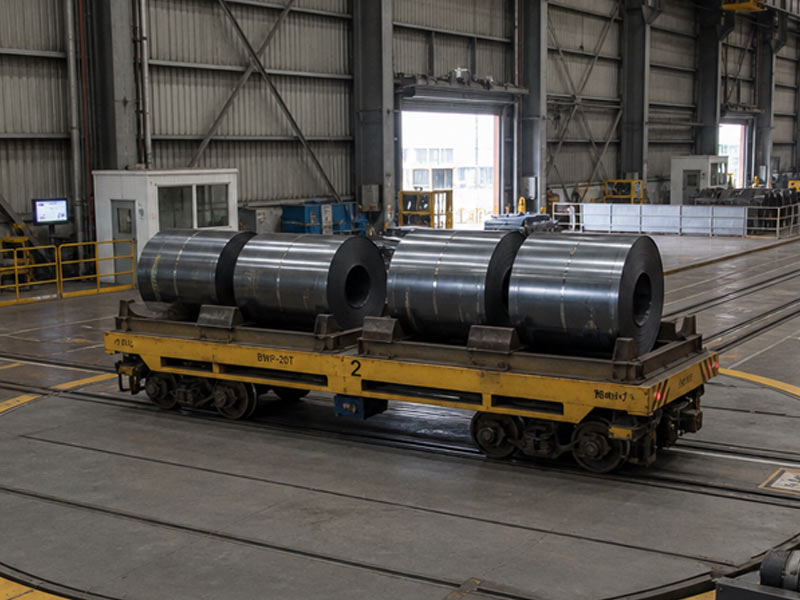

The steelmaking plant uses rail-based transfers across workshops and zigzag paths between narrow production lines.

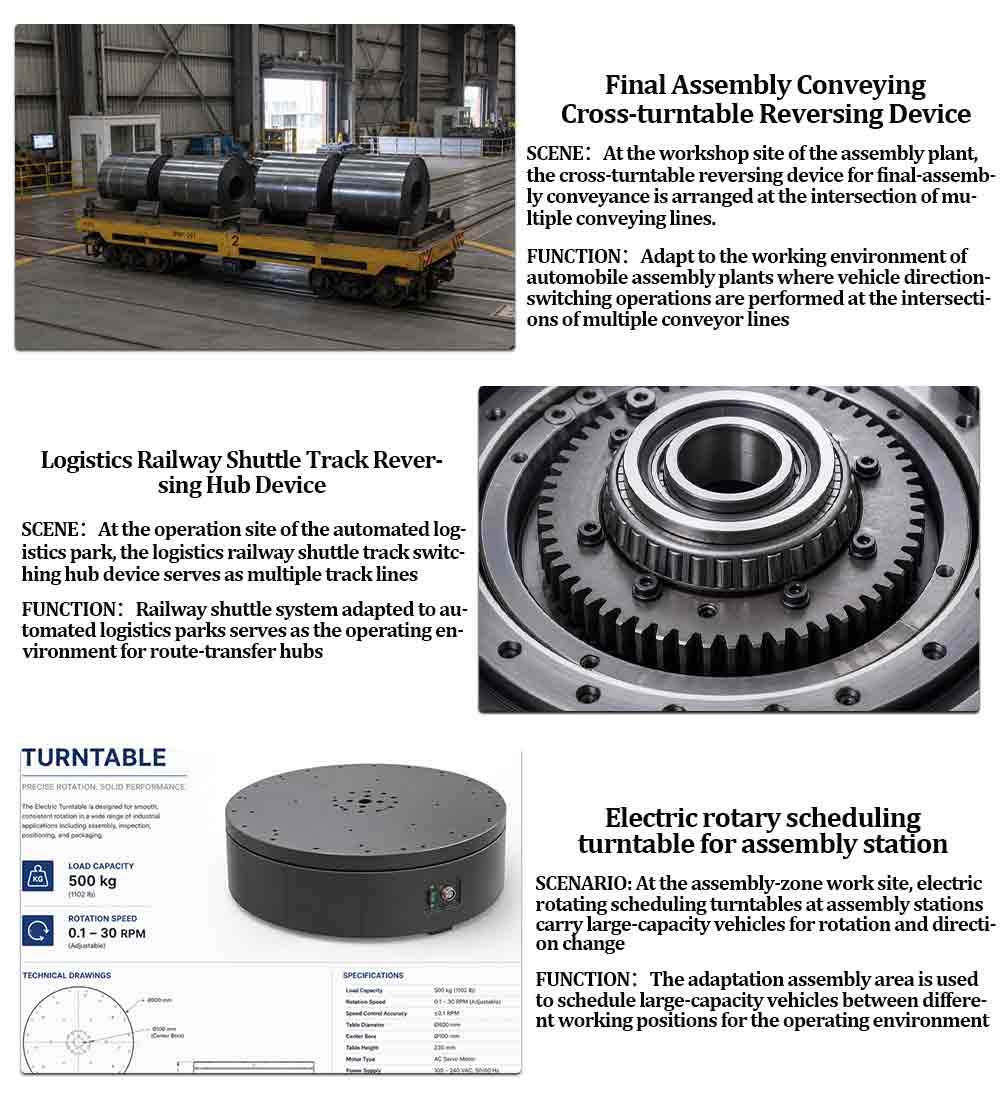

The automobile assembly plant uses the intersection of multiple conveyor lines for vehicle direction switching.

The transformer and heavy electrical equipment plant serves as a multi-process flow center for painting, assembly, and warehousing.

The automated logistics park’s rail-based shuttle system serves as a path conversion hub.

The large shipbuilding plant’s section assembly area is used for scheduling large-capacity vehicles between different work positions.

The ceramics and brick manufacturing plants use rail-guided connections for the automated kiln loop lines.
