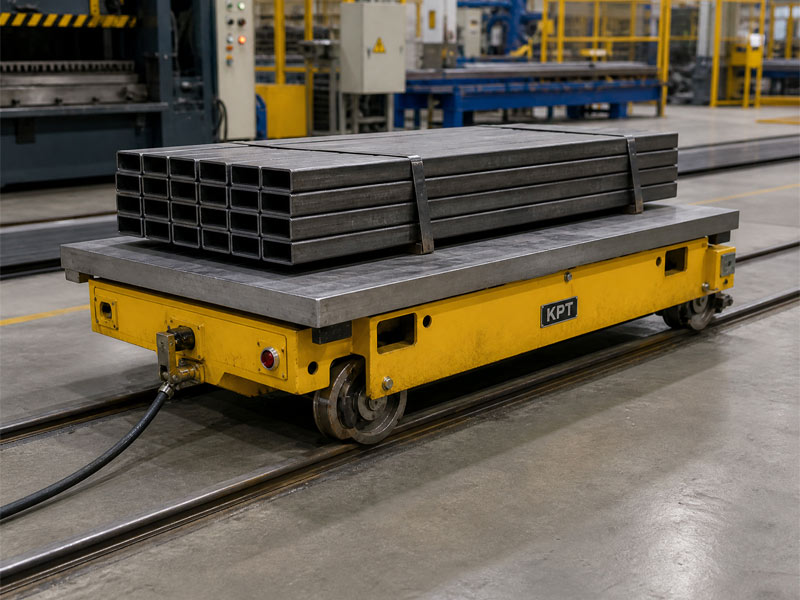

The KPT series cable-stayed rail transport vehicle is a rail-mounted transport device that achieves power supply by directly dragging a ground cable. Its working principle is extremely simple: one end of the cable is connected to a ground power source, and the other end is directly connected to the vehicle’s control system. As the transfer cart reciprocates, the cable is dragged between the rails, providing a continuous power source for the AC motor.

Product Videos

Model	KPT
Rated Load Capacity (T)	2	5	10	16	20	25	30	40	50	63	80	100	150
Overall Dimensions (mm)	2000*1500	3500*2000	3600*2000	4000*2000	4000*2000	4500*2200	4500*2200	5000*2500	5500*2500	5600*2500	6000*2600	6500*2800	10000*3000
Overall Height (mm)	450	500	500	550	550	600	600	650	650	700	800	900	1200
Wheel Diameter (mm)	φ270	φ300	φ300	φ350	φ350	φ400	φ400	φ500	φ500	φ600	φ600	φ600	φ600
Maximum Wheel Pressure (KN)	14.4	25.8	42.6	64.5	77.7	94.5	110.4	142.8	174	221.4	278.4	343.8	265.2
Rail Inner Distance (mm)	1200	1435	1435	1435	1435	1435	1435	1435	1435	1435	1800	2000	2000
Motor Power (Kw)	0.8	1.5	1.5	2.2	2.5	3	4	5.5	5.5	7.5	7.5	11	15
Wheel Track (mm)	1200	2500	2600	2800	2800	3200	3200	3800	4200	4300	4700	4900	7000
Travel Length (m)	25	25	25	25	30	30	50	50	50	50	50	50	50
Number of Wheels	2004/6/8												8
Ground Clearance (mm)	Min 50
Travel Speed (m/min)	0-25
Operating Method	Remote Control + Pendant control
Safety Protection	Sounds&Alarm light +Emergency Stop button
Tabletop Requirements	Add rubber matting/V-shaped frame/table lifting/side-tilting/toolrack(non-standard customization)

Extremely high cost-effectiveness: By eliminating the need for batteries, reels, or complex insulated rails, the KPT series boasts the lowest cost among all powered railcars.

Unlimited operating time: Powered directly from the grid, it eliminates battery charging cycles and range anxiety, making it suitable for high-intensity work.

Ultra-low platform design: The interior space is highly utilized, eliminating the need for bulky battery packs and allowing for a very low overall height, facilitating the lifting of large and heavy workpieces.

Easy installation: No special requirements for rail laying (such as insulation treatment); ordinary rails are sufficient.

Extremely low maintenance costs: Aside from routine maintenance of the motor and reducer, almost no other consumables are required.

Short-distance inter-workshop material handling: Typically used for material transport between two workstations or workshops with a straight-line distance of less than 20 meters.

Machine tool/mold assembly: In mold workshops or machining workshops, it serves as a tool for quickly moving heavy molds and large castings next to machine tools.

Fixed-station circulating assembly line: In streamlined operations, it serves as a reciprocating transport node between fixed workstations.

Heavy component lifting assistance: Within the crane operating area, it supplements lateral ground handling, relieving the workload of overhead cranes.

Rated load (T)	1-1000 (T)
Rail inner distance (mm)	1-1300 (T)
Motor power (kW)	0.8-22 (kw)
Wheel track (mm)	1200-7000
Running length (m)	0-50
Ground clearance (mm)	Min 50
Running speed (m/min)	0-25
Operating method	Remote control+Pendant control
Safety protection	Sounds&Alarm light +Emergency Stop button
Tabletop requirements	Rubber Sheet/V-Shaped Frame/Table Lifting/Side Tilting/Tooling Rack
