Electric chain hoists are light-duty lifting equipment, consisting of a motor, gear transmission mechanism, high-strength alloy steel chain, and braking system. They utilize 80-grade heat-treated lifting chains, resulting in a compact size, light weight, smooth operation, and excellent safety performance. Equipped with an electromagnetic power-off brake, upper and lower limit switches, and overload protection devices to prevent hook slippage and overrunning.

The product can be used for fixed hanging or moved on I-beam rails with a hand-pushed/electric trolley. It supports single-speed and dual-speed lifting, and can be operated via hand handle/button or wireless remote control. Widely used in factory workshops, warehouses, and logistics yards for material handling, equipment assembly, and maintenance, it offers various tonnage and lifting height specifications to suit various industrial lifting conditions.

Product Videos

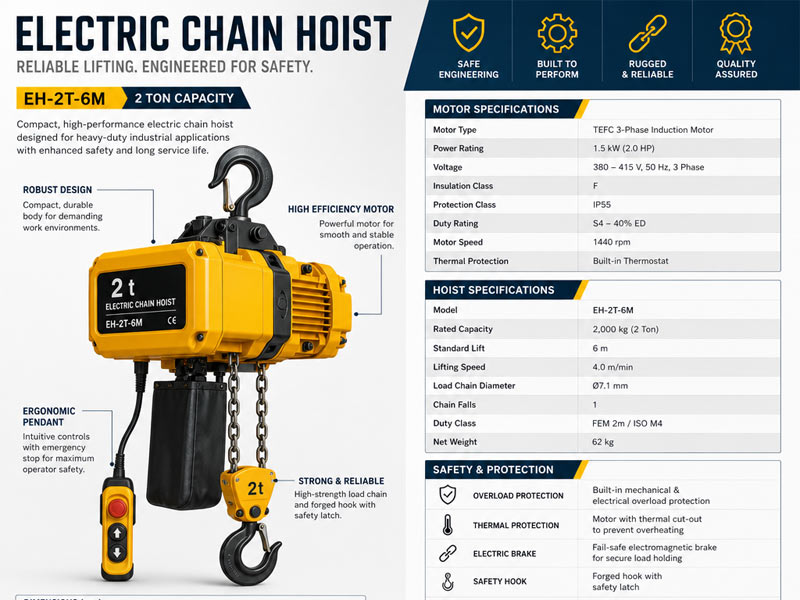

Parameter Items	Technical Specifications
Rated Load (T)	0.5 – 50 (Commonly used 1, 2, 5T)
Lifting Height (m)	3 – 30 (Standard 3m, customizable)
Lifting Speed (m/min)	2.4 – 6.8 (Single/Dual Speed Supported)
Operating speed (m/min)	11 – 21 (Handheld/Electric minivans available)
Job level	M4 / M5 (ISO standard)
Lifting chain material	G80 grade manganese steel hardened chain
Motor power (kW)	0.75 – 7.5 (depending on load configuration)
Insulation class	Grade F (Excellent heat resistance)
Protection level	IP54 / IP55 (dust and splash resistant)
Supply voltage (V)	AC 220V/380V/440V, 50/60Hz
Control voltage (V)	24V / 36V safety voltage control
Limit switch	Automatic power-off protection at upper and lower limits
Braking	Dual electromagnetic braking + mechanical braking

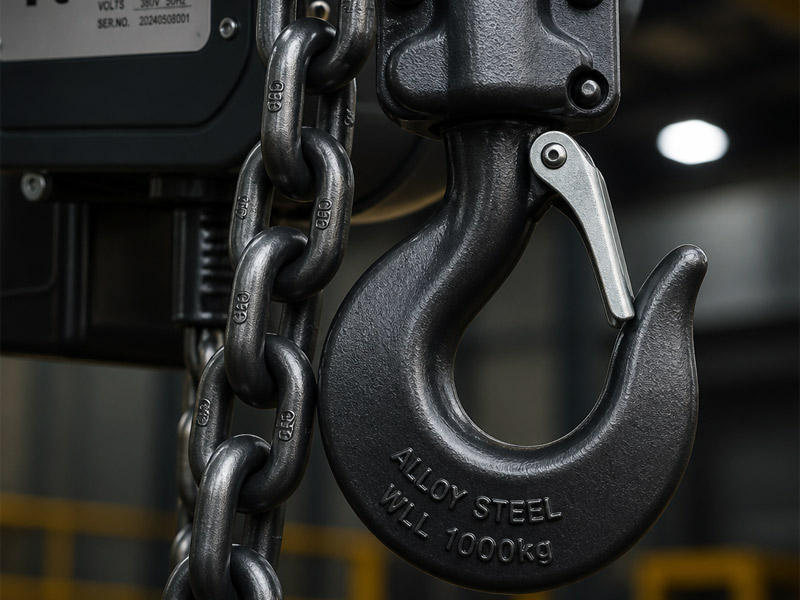

hook material	Forged alloy steel (with safety latch)
Net weight (kg)	45 – 280 (depending on model)

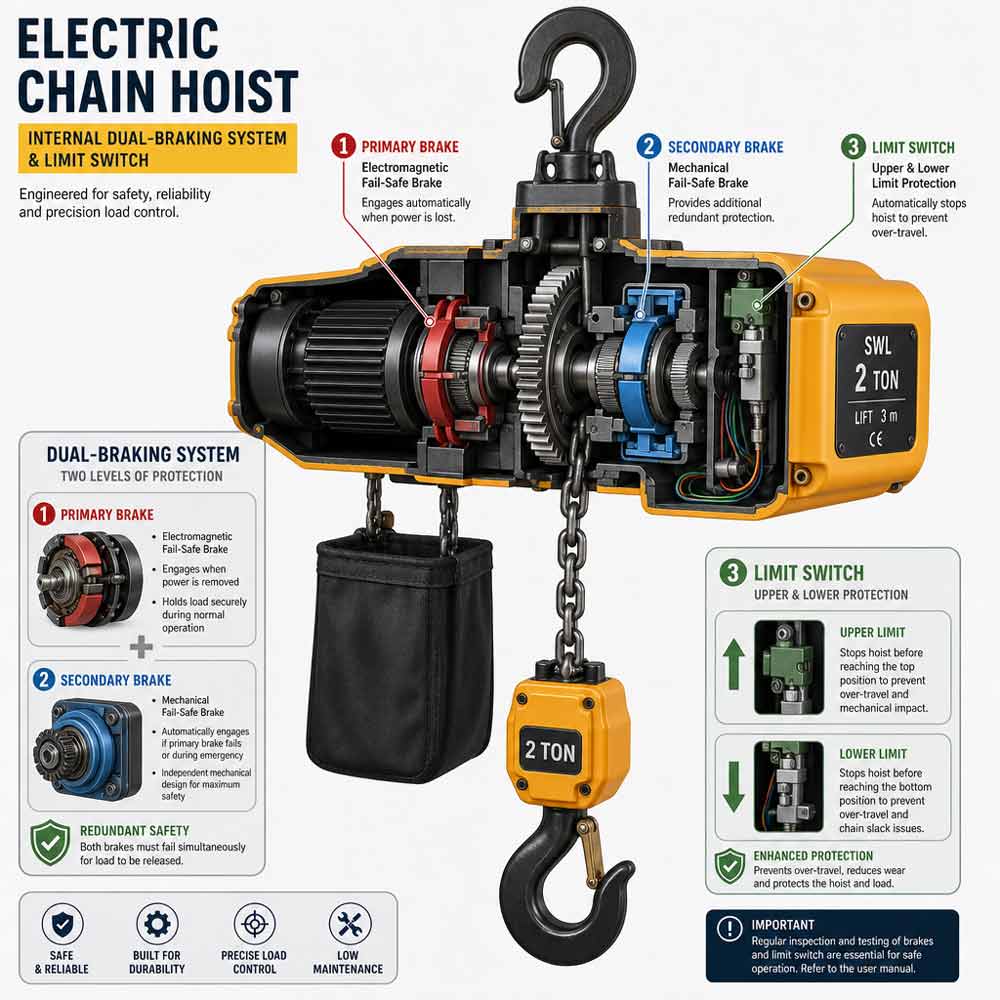

Dual Braking System: Employs a combination of side magnetic braking and mechanical braking to ensure immediate braking even in the event of power failure.

High-Strength Load Chain: G80 chain with carburizing and hardening treatment, possessing excellent toughness and wear resistance.

Overload Protection Device: Optional mechanical friction clutch to prevent equipment damage caused by unauthorized overloading.

Precision Gear Drive: Multi-stage slant gear drive system, low operating noise and high transmission efficiency.

Safety Limit Control: Integrated travel limit switch to prevent lifting overload and overshoot accidents.

Aluminum Alloy Housing: Aluminum alloy housing with heat dissipation design, lightweight and with excellent heat dissipation performance.

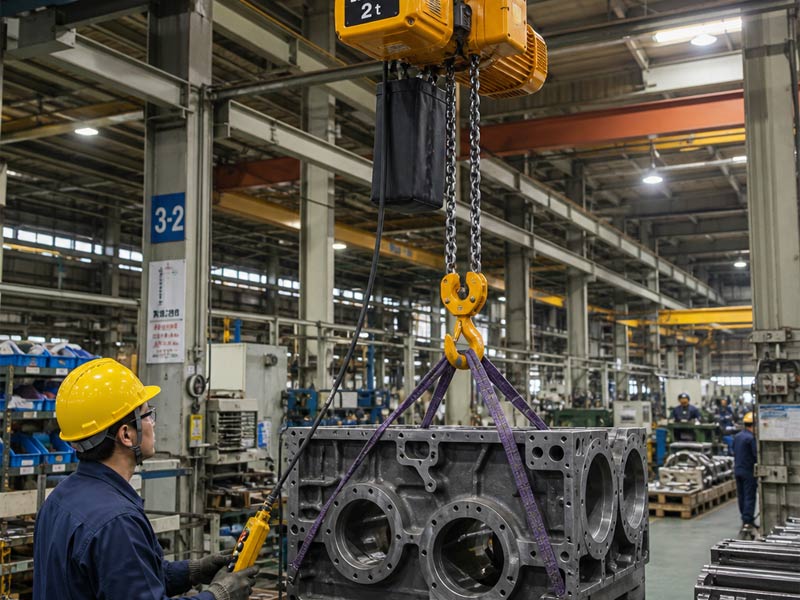

Used for precision assembly and hoisting of machine tool parts.

Vertical material handling and stacking in automated warehousing systems.

Lifting and rapid alignment of large molds in mold production workshops.

Frequent lifting and transfer of materials in electroplating production lines and humid environments.

Auxiliary loading and unloading of small cargo at port container terminals.

Vertical lifting of lightweight steel structural components on construction sites.
